Inserting a Micro SD Card:

1. With the mirror facing towards you, insert the memory card with the text facing up into the Micro SD Card slot.
2. Push the memory card in until you hear a click.

Installing rubber clips:

1. Remove the tape from the EVA pads. There are two sizing options for the EVA pads. Choose the size most suitable for use.
2. Two types of fasteners are supplied. Use the one that best suits the existing rear-view mirror. The longer fasteners are for bulkier rear-view mirrors.
3. Loop the rubber fasteners over the fastener clips.
4. Place the Mirror DVR in front of the existing rear-view mirror and ensure that the camera lens clears the outer edge of the existing rear-view mirror.
5. Loop the bottom rubber fasteners over the existing rear-view mirror and attach them to the bottom fastener clips

Connecting to power supply:

Only use the included charger to power and charge the NC-962MIRDVR.

1. Once the Mirror DVR is securely installed onto the vehicle's rear-view mirror, plug the 12V DC power adaptor into the vehicle’s 12V/24V accessory outlet.
2. Run the cable along the vehicle's console and windscreen and plug the USB input into the Mirror DVR port marked with the USB icon.

Installing the rear camera:

1. Select a flat and centred location near the licence plate lamp at the rear of the vehicle to mount the rear camera.
2. Attach some tape to the camera bracket to hold it in position and then drill two small holes. One hole is for the first screw and the other hole is to enable the rear camera cable to thread through.
3.  Fasten the first screw slightly to allow for some adjustment of rear camera.
4. Insert the rear camera cable through the second hole and check the installation position.
5. Mark the position suitable for the second screw and drill a small hole for it
6. Fasten the second screw and securely tighten both screws.

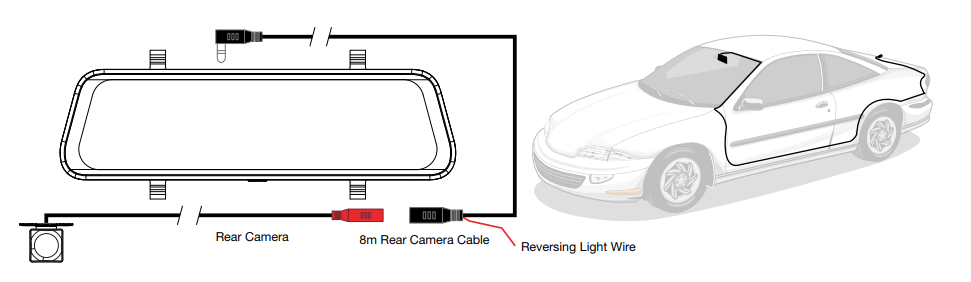

Rear camera wiring:

If you do not have any experience, it is highly recommended that you refer to a trained professional to complete this.

The connection to the reverse light wire ensures that this camera automatically turns on every time the car goes into reverse.
