Micro SD card Installation:

Please insert the memory card into the Micro SD Card slot with the chip contact surface facing down. Insert until you hear a click. Please ensure that the Micro SD card is at least a class 10 from major brands such as SanDisk, Kingston, Toshiba, and Samsung.

Mounting:

There are two mounting options available for installation

• Windscreen suction mount
  1. Clean the windscreen area where the suction mount is to be mounted.
  2. Pull the suction cup lever up to release suction.
  3. Press the suction mount on the windscreen and lock it by pressing the suction cup lever down until it snaps into place.
  4. Fit the NC-700 onto the suction mount.
• Air-con vent mount
  1. Choose area of air-con vent where the device is to be installed, then insert the mount hook into the air grille so it holds the grille piece. Turn the knob until it’s firmly secured.
  2. Lock the NC-700 monitor into the mount buckle.
  3. Adjust the knob behind screen to tighten up the monitor with the mount.

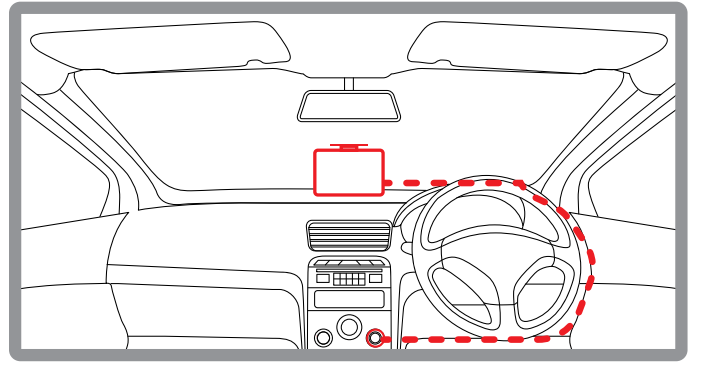

Connecting to power:

Using the visuals above for reference based on your choice of mount, please ensure that you only use the supplied 12/24V power adaptor to power the NC-700
